Diamond Coated Hole Drill Bits For Porcelain Ceramic Tile

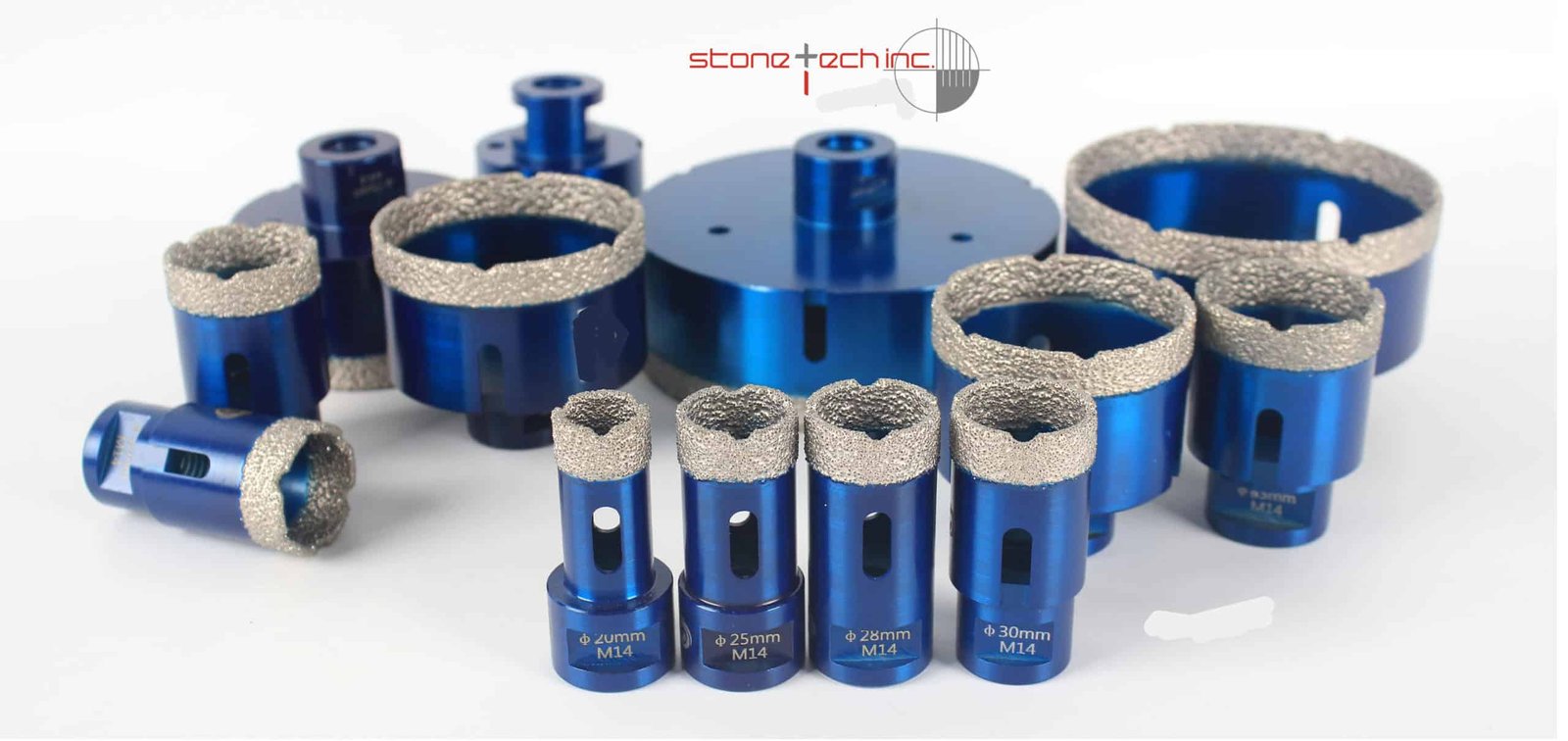

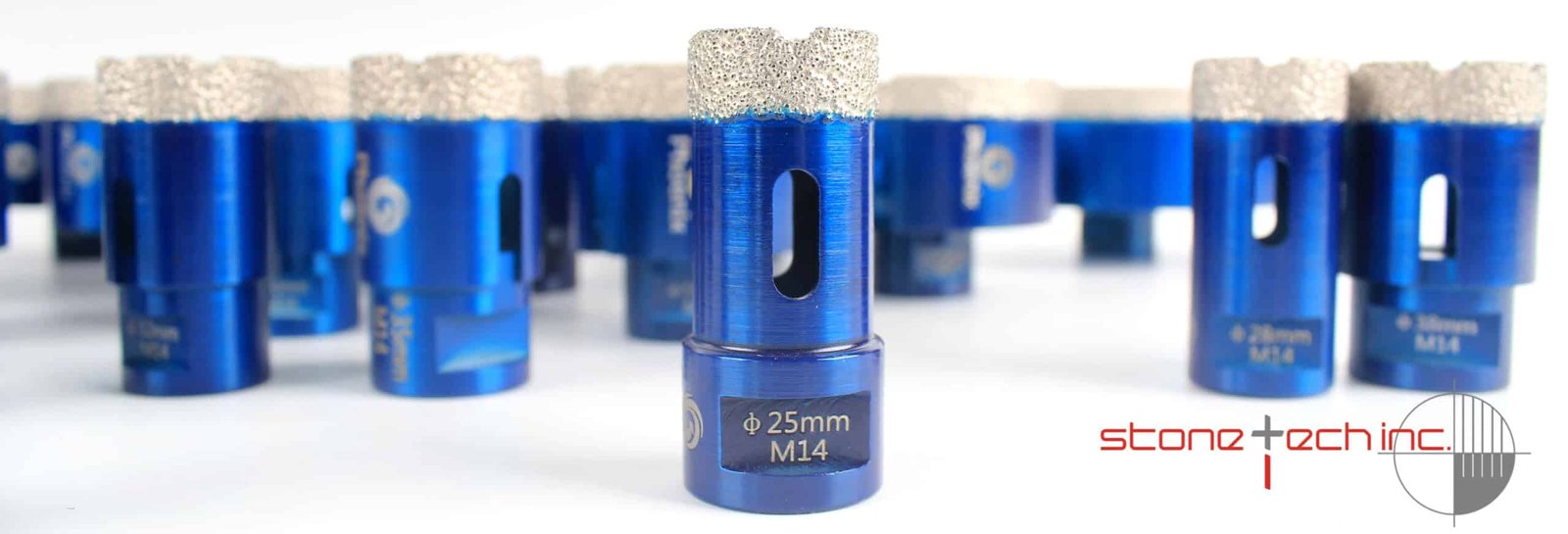

Vacuum Brazed Diamond Hole Saw Drill Bits

Designed for ceramic tiles, porcelain tiles, Dekton, marble, granite and concrete.

Diameter size are available in 20-125 mm

10 mm diamond height

5/8″-11 USA , M14 Europe Thread

Fit On Most of Angle Grinder and power drill

Average Life: 50-60 holes Minimum Work Speed: 10000 rpm

Dry Work Only

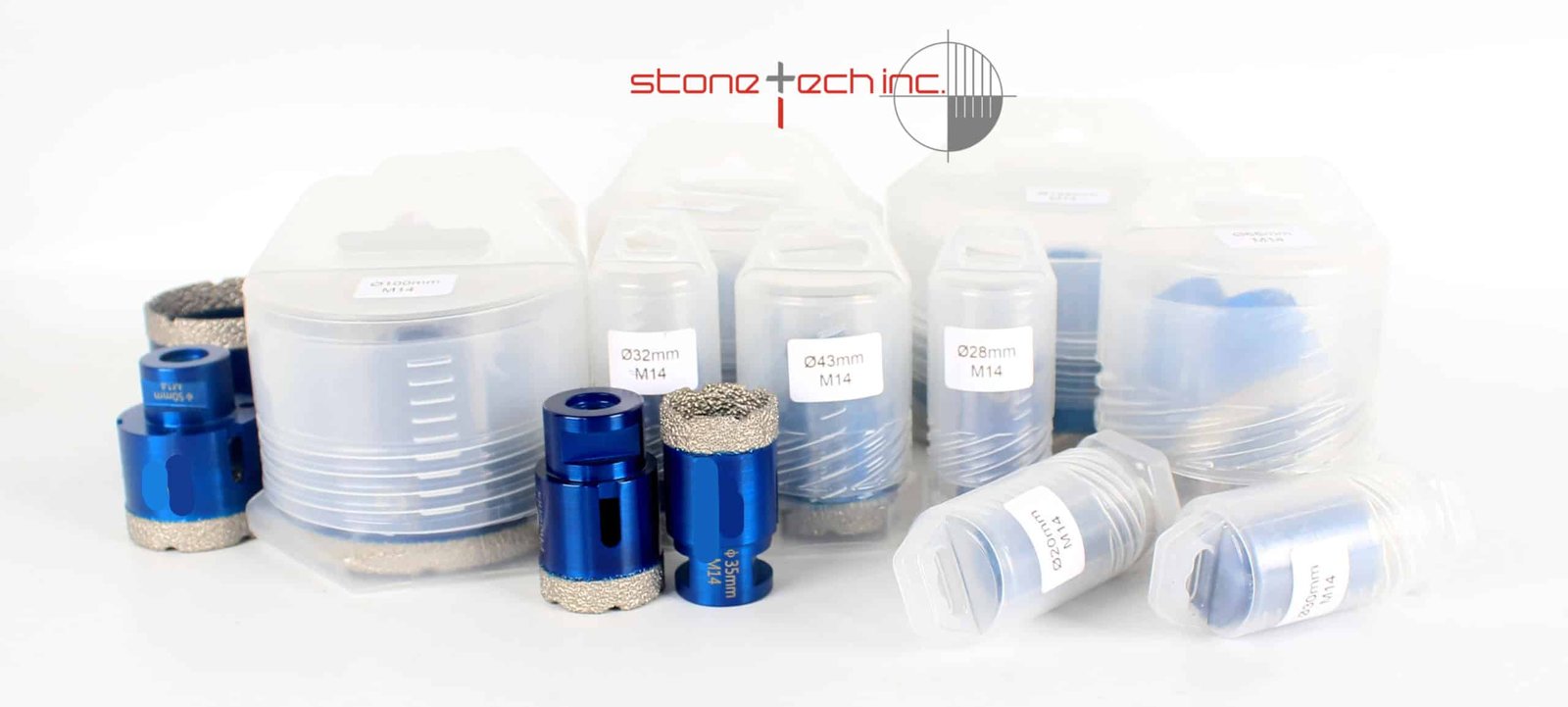

Plastic Bister Package

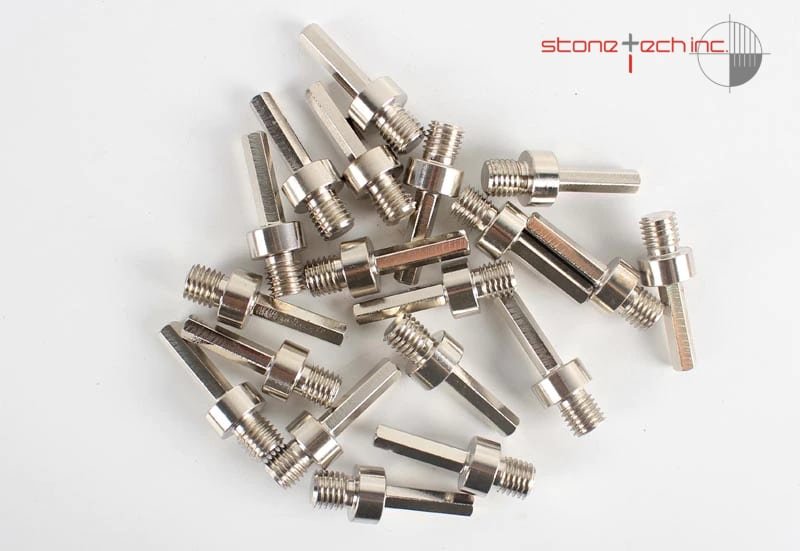

If you need the adapter, choose it

Note:

The average life of the tile drill bit depend on the type of material, thickness, proper cooling and user. Confirm the suitable rotation speed and perform a slight orbital movement while drilling Before futher drilling, we must ensure that the drilling bit is clean and free of any obstruction.​

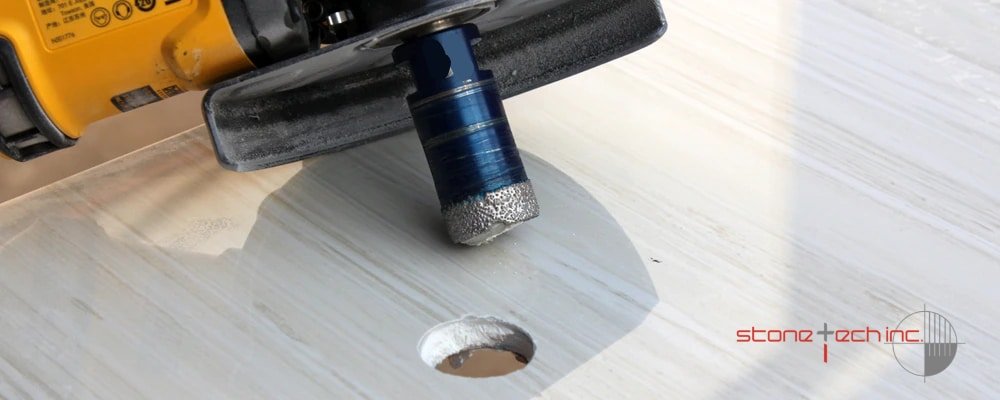

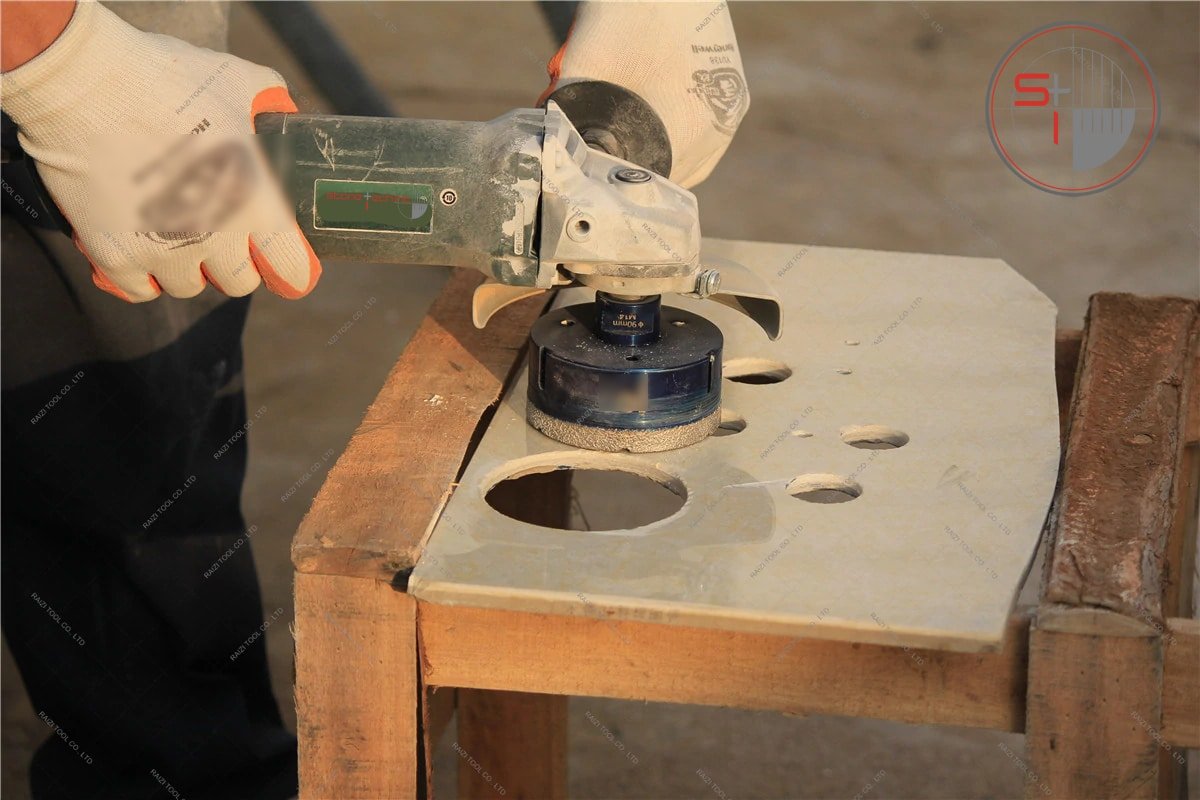

Start drilling as per following instructions:

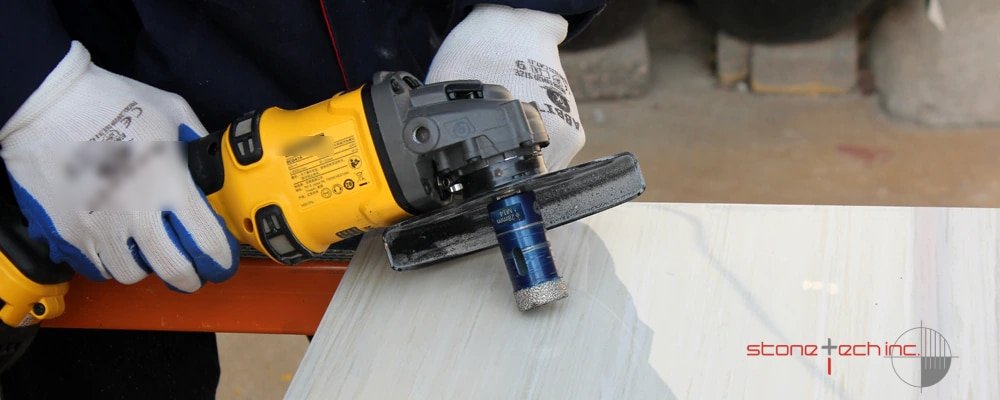

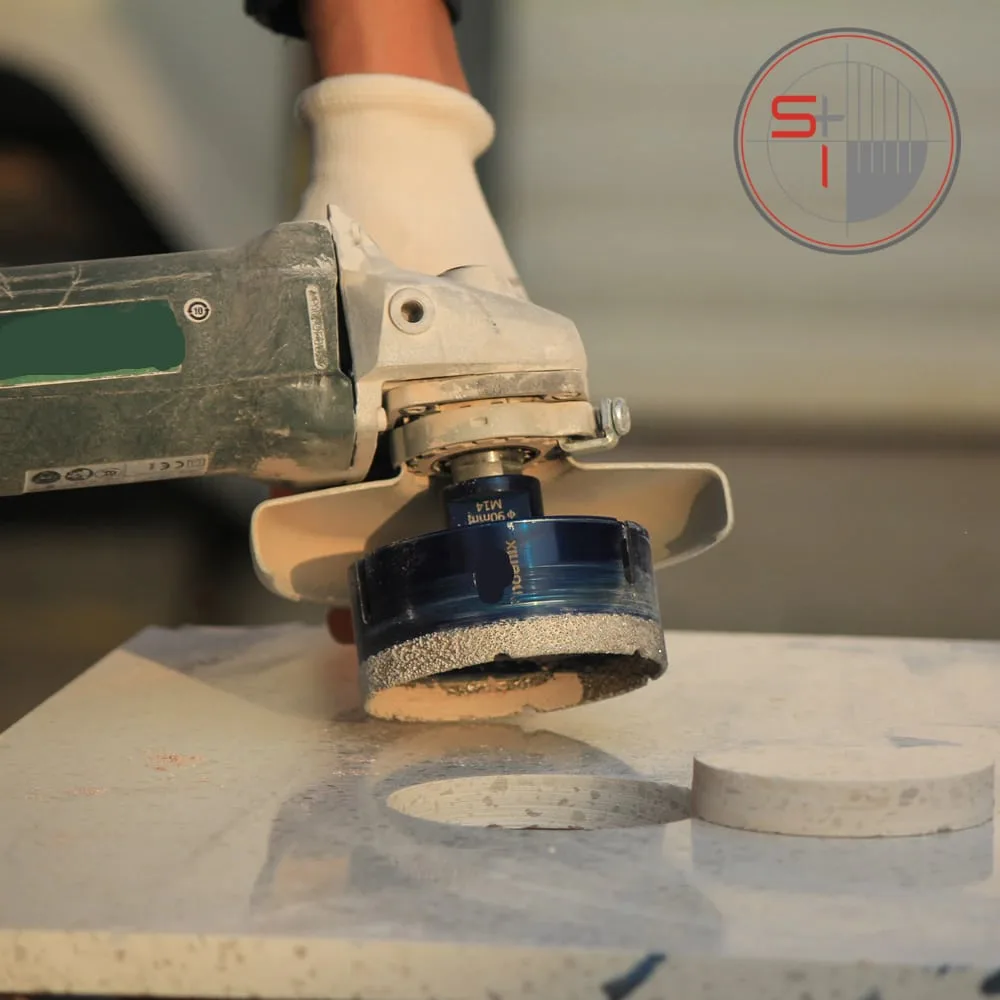

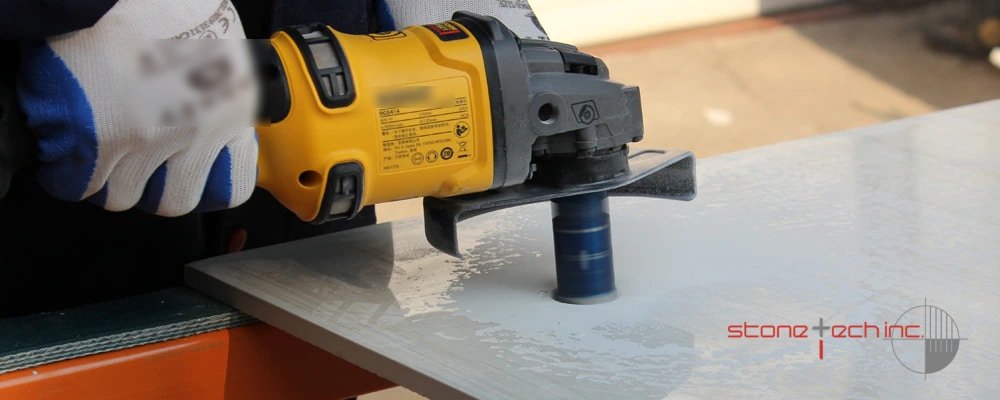

Place the drill at a 45 degree angle. Drilling till the hole start to form. Bring the drill up into upright position. Continue to drill and swaying the machine along a circle.
